Product List

OPR3D-STD


 OPR3D is 3D/2D Viewer Product that is excellent performance compared to the price. This product has a variety of functions such as size measurement, sectioning, a copy of the image, 3D-> 2D projection geometry and 3D/2D file conversion. It can easily be used in the field users who do not have experience with CAD in easier to use. Affordable is selling, return on investment is excellent.

MDX (3D Viewer+2D CAD)


 MDS is an innovative product that 2D CAD has been collaborated with the 3D main function of MODView. Direct transfer is possible in the operation of 2D CAD  screen read directly without conversion 3D/2D CAD data, you can use the powerful CAD functions of 2D CAD. A combination of 3D and 2D CAD data use, It will provide the business innovation excellence. (Permanent license)

More...

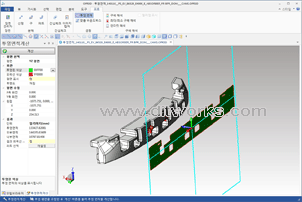

OPR3D-Pro


 OPR3D-Pro product allows you to use a variety of advanced features than the function of the product Standard. It provides a variety of fabulous and powerful functions such as, “Projection Area”,
 “Interference Check”, "Thickness Analyze",

“Explode”, “B.O.M”, “Draft Angle”,

“Under Cut”, "Create 3D AVI" and “Radius Analyze”.

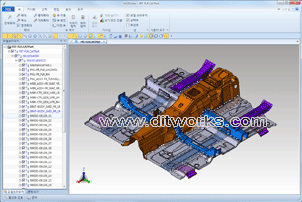

MODView-Basic


 Shape analysis read directly without converting the original 3D/2D CAD data without the use of expensive 3D/2D CAD. It is the viewer software that can do the business such as size measurement, sectioning, a copy of the image, 3D-> 2D projection geometry and 3D/2D file conversion. It can easily be used in the field users who do not have experience with CAD in easier to use. Affordable is selling, return on investment is excellent. It uses the viewer of 3D/2D from the company of all of Hyundai and Kia, Sold more than 6,000 Copy is now a domestic viewer of superior performance.

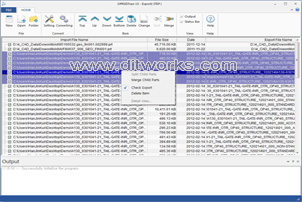

OPR3D-Tran


 Converting work, such as 3D data convert to STEP, IGES, Parasolid and 3D PDF, etc is work that designers hated because it is a task that a lot of time-consuming, repeated execution. OPR3D-Tran is a solution that solves tasks at once such repetition. OPR3D-Tran is a software-only file conversion by selecting a folder or multiple source files, us to automatically convert any file at a time.

Case of Application


 It is the use case available to every business with a MODView and OPR3D.

Method that can be utilized more diverse cases in the following example is infinite.
