OPR3D-Tran  Detail Features



 Tran is a program dedicated to 3D conversion file  such as STEP, IGES, Parasolid, JT, 3D PDF to convert collectively by reading the files of various programs such as CATIA, UG NX, Pro-E. The benefits of the OPR3D Tran, is a fast conversion speed and  it has excellent compatibility. So, business of file conversion that time consuming and inconvenient will be quick and easy

Supportable file format



CATIA V5 & V4(*.CATPart,*.CATProduct, *.model ), UG NX(*.prt),

Creo(Pro-E, *.prt,*.asm), SolidWorks, SolidEdge, Inventor, STEP, CGR,

IGES, Parasolid, Prc, IFC, ACIS(*.sat), U3D,Rhino, 3D PDF

Support convert file formats



STEP(*.stp), IGES(*.igs), Parasolid(*.x_T), 3D PDF(*.pdf) , JT,
STL, OPR3D, ACIS(*.sat), PRC, U3d, VRML



-> Offers fast conversion speed and provides excellent compatibility


** Can read in adobe PDF reader 9 or higher version without any specific viewer program when convert to 3D PDF file

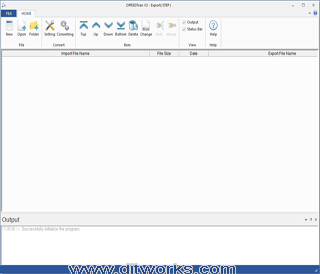

Variety of management features to convert



  • Provides folder selection feature selection and feature multiple file



  • The ability to specify the order of the files to be converted



  • The option can be set for each type of file conversion



  • Change the name of the file to be converted



  • Can check the conversion time and conversion error, whether generated

Support preview of the converted file waiting (Detail View)



  • You can see the shape of the converted files waiting in the Detail View function



  • Expansion / Contraction, and Rotation functions are supported

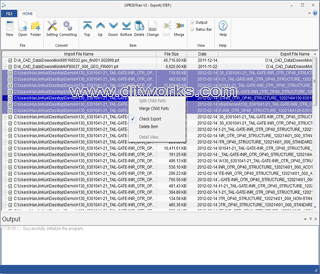

Separation assembly and part files Merge files conversion



  • Select the assembly file and selecting only the part to be converted here



  • Supports the ability to convert files (Merge) one together multiple part files
